Anteros 36 Yacht Features


Structurally, a yacht made of carbon fibres is very stiff, a characteristic that will be particularly noticed on rough seas. The keel is fixed to the hull by means of a wide flange to a compact section of laminate reinforced on the inside by a mesh of ribs. Partition panels are made as sandwich structures of the same materials as the hull, creating a sturdy structure.



Length overall 10.99 m 36.06 ft
LWL 9.62 m 31.56 ft
Beam 3.46 m 11.48 ft
Draught @ CWL 2.20 m 7.22 ft
Ballast 1350 kg 2976 lbs
Displacement 3480 kg 7672 lbs
Fuel tank 73 ltr 19.3 USg
Water tank 200 ltr 53 USg
Engine Volvo Penta with 115 A alternator 14 kW 20 HP
IRC Handicape  (provisional) 1.110

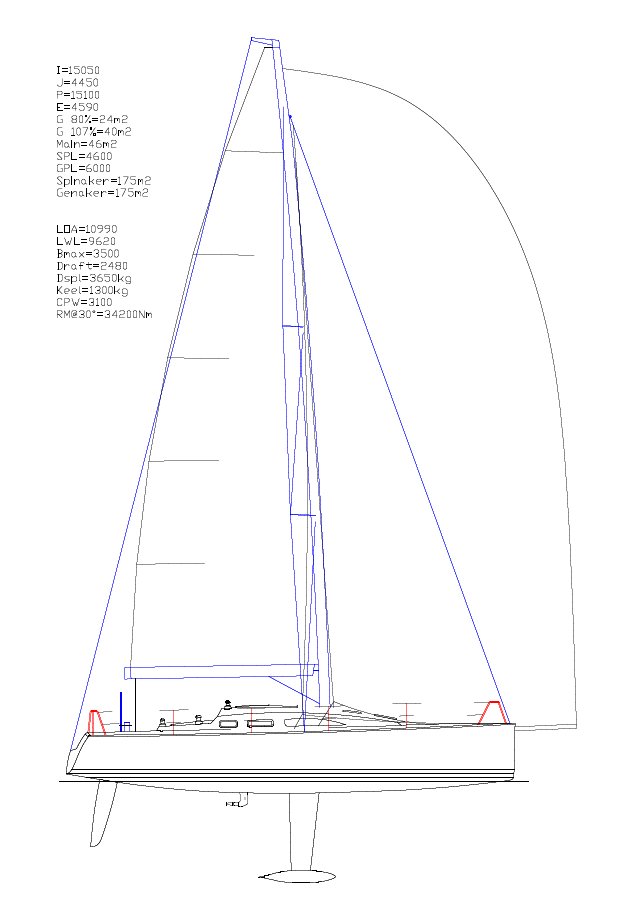

I= 15.05m 49.38 ft
J= 4.45 m 14.60 ft
P= 14.40 m 47.90 ft
E= 4.59 m 15.06 ft
Mainsail 46 m2 473.61 sq.ft
107% Genoa 40m2 430.55 sq.ft
Asymmetric   175m2 1,883.68 sq.ft
Germanishcer Lloyds CE Certified



Exceptional results, the reality even exceeding our own expectations.


STIX

BOAT DATA:

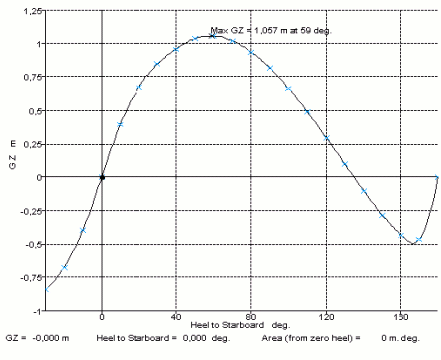

d 0 GZ @ 90 0.8160
Lh 10.9800 GZ @ d 0.5590
Bh 3.4600 Fv 134°
Mmsc 3600 Fd 106°
Hce 7.3380 Bwl 2.7560
Hlp 0.6610 AS 75
LWL 9.9300

STIX FACTORS: (calculated from the boat data)

1- Base Length Factor
Lbs = 10.2800

2- Displacement Length Factor
Fl = 0.9865
FDL = 0.8919

3- Beam Displacement Factor
Fb = 2.3976
FBD = 0.8770

4- Knockdown Recovery Factor
Fr = 2.6688
FKR = 1.1107

5- Inversion Recovery Factor
FIR = 1.3400

6- Dynamic Stability Factor
Agz = 84.8989 (from the stability curve)
FDS = 1.5000

7- Wind Moment Factor
FWM = 1.0000

8- Downflooding Factor
FDF = 1.1778
STIX (calculated from boat data and stix factors)
STIX = 43.2105
